In 2020, PMC vowed to upgrade and enhance the most useful components and functionalities of the AP-2 and AP-3 spray guns. PMC has combined the most reliable and eliminated the least practical elements of these guns. These improvements have turned their weakness into an extreme asset.
MODEL

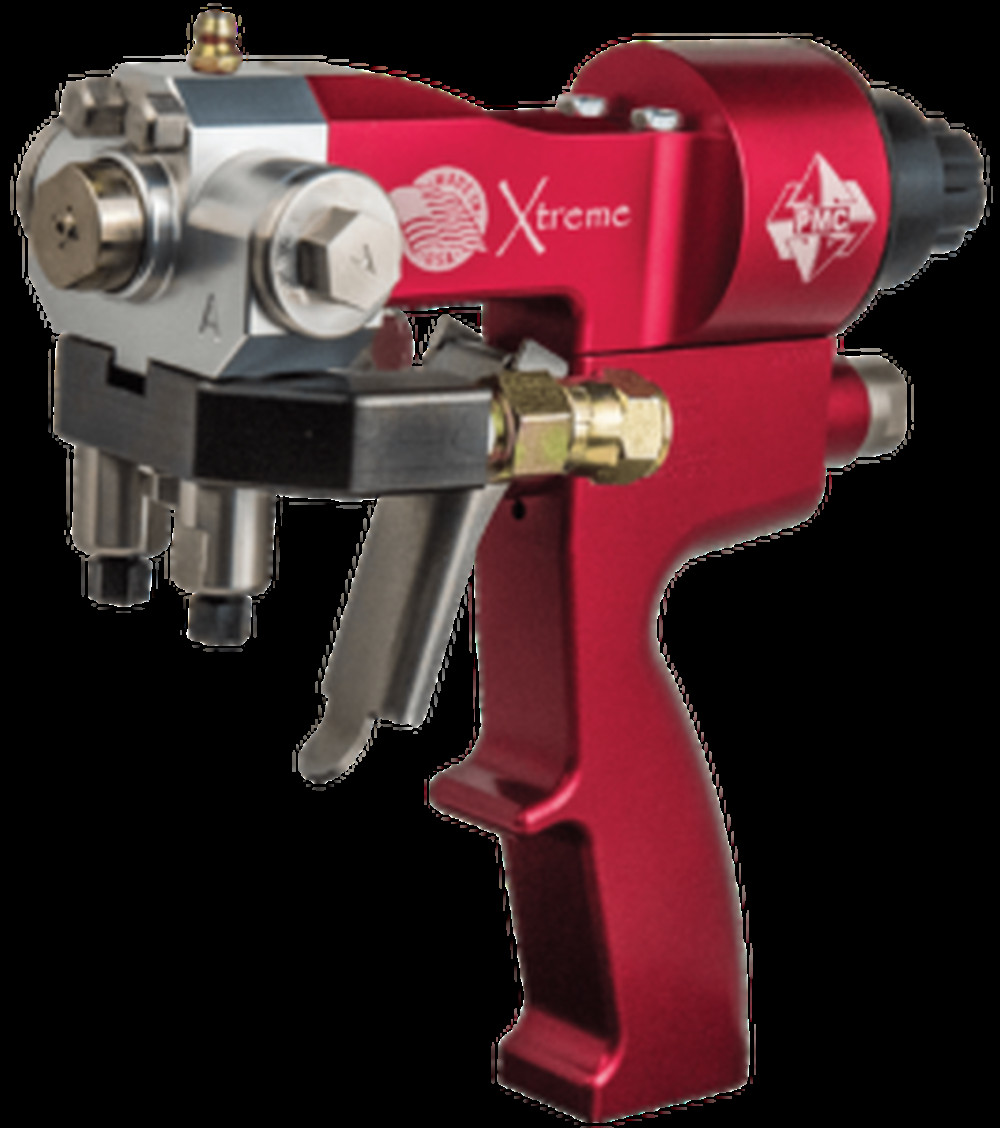

PMC Xtreme Spray Gun
Weight (w/o coupling block)
2.4 lbs (1.1 kg)
Weight (w/coupling block)
3.1 lbs (1.4 kg)
Maximum Working Pressure
3,500 psi (245 bar)
Maximum Air Pressure
125 psi (8.6 bar)
Maximum Production (1:1 Ratio)
50 lbs/min (22.7 L/min)
Minimum Production (1:1 Ratio)
3.1 lbs/min (1.55 L/min)
Dimensions
7.1”H x 3.4”W x 7.5” L
(181mm x 87mm x 189mm)
