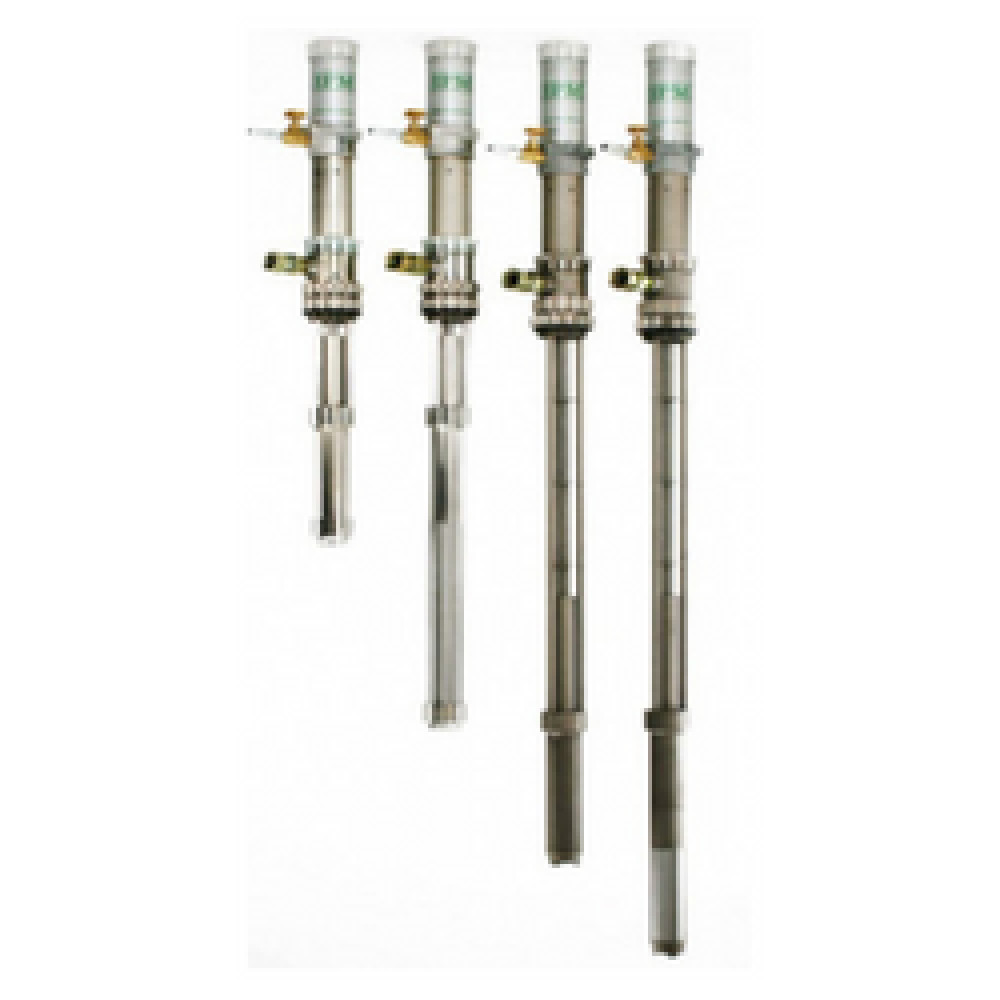

IP-02S Pump - Stainless Steel
IP-02S Pump - Stainless Steel
Configure for Pricing
IPM’s IP-02 series of pumps are specifically designed for use with difficult to handle materials. The immersed lower pump, tie tubes, and sealing bung bushing allow quick drum change without exposing the system to contamination and moisture.
Product Description
Features
- Fully air operated
- 2 ball piston design provides uniform positive displacement
- Extremely durable pump with long life packing
- Specially designed piston seals do not come into contact with material pumped. Hence, a longer life span as it is able to handle highly problematic fluids like Isocyanates which crystallizes on piston rods upon contact with moisture in air and rupture seals.
Typical Applications
- 5 gallon pail application
- Foam chemical supply
- Spray gun supply
- Dispensing valve supply
- Cleaning chemical supply
- Fluid transfer
Typical Fluids Handled
- Solvent based paints
- Water based paints (SST models)
- Solvents
- Cleaning chemical supply
- Chemicals
- Catalysts
- Isocyanates
- Adhesives
- Resins
- Polyurethanes
- Polyureas
Technical Information
Fluid Ratio : 2:1
Max Output Flow Int : 2.5 gpm (9.5 lpm)
Max Output Flow Cont : 2.0 gpm (7.6 lpm)
Max Output Pressure : 360 psi (24.8 bar)
Max Air Input Pressure : 180 psi (12.4 bar)
Air Inlet Port : 1/4 npt(f)
Fluid Outlet Port : 3/4 npt(f)
Rod Piston Packings : Teflon®
Other Seals : Viton®
Rod Cylinder : Carbon Steel or Stainless Steel
Other Wetted Parts : Carbon Steel or Stainless Steel
Weight Stubby Drum : 11.5 lbs. (5.2 Kg.)
Package : 4” x 4” x 35” (102mm x 102mm x 889mm) 16 lbs. (7.26 Kg.)
