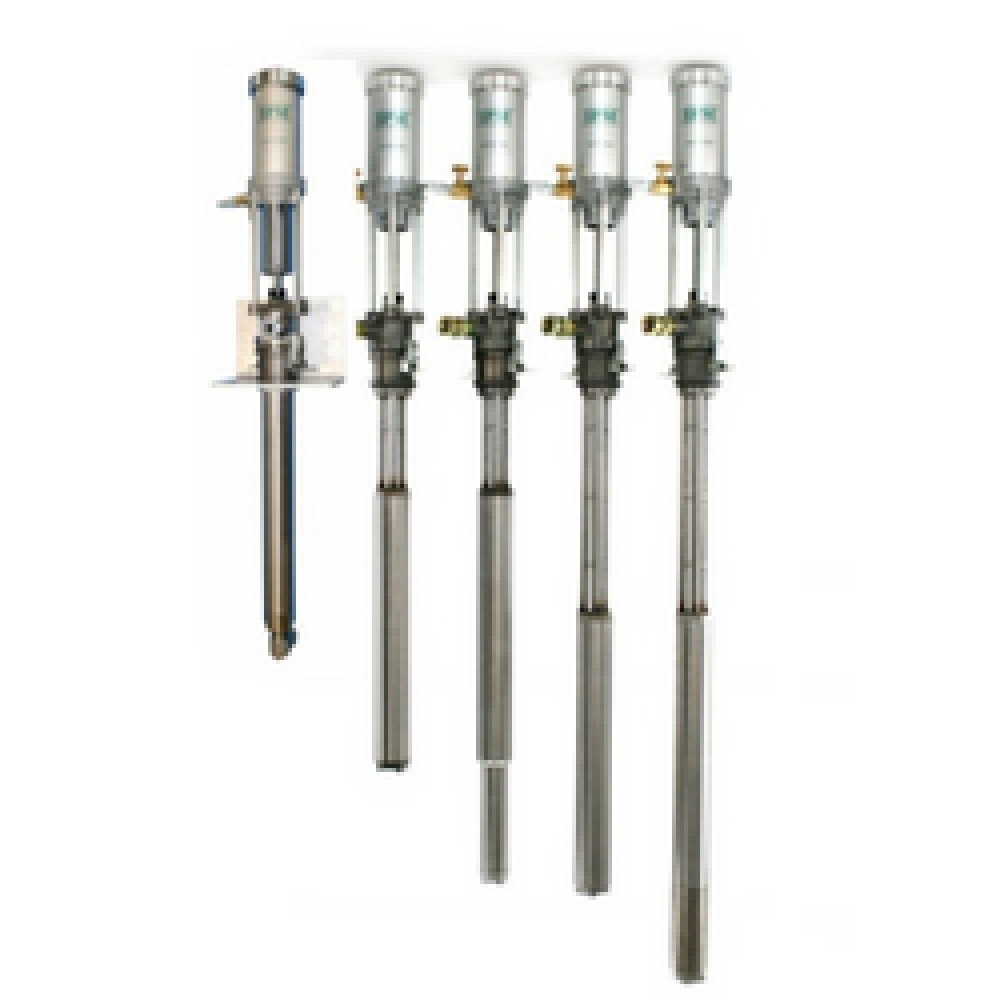

OP242CD Pump (2:1 Ratio)
OP242CD Pump (2:1 Ratio)
Configure for Pricing
Air Operated Fluid Pump which is specially designed for corrosive materials. Commonly used for low ceiling applications
Product Description
Features
- Fully air operated
- 2 ball piston design provides uniform positive displacement
- Extremely durable pump with long life packing
- Specially designed piston seals do not come into contact with material pumped. Hence, a longer life span as it is able to handle highly problematic fluids like Isocyanates which crystallizes on piston rods upon contact with moisture in air and rupture seals.
Typical Applications
- For 55 gallons steel drum
- This pump is designed for the convenience of operator to take out/shaft in the pump when working inside the truck, due to smaller diameter at the bottom of the pump
- For fluid transfer and feed
- Mobile air spray machines
Typical Fluids Handled
- Polyurethanes (Isocyanate or Polyol)
- All kinds of paints
- Coatings
- Mold release
- Stains
- Varnishes
- Lacqueurs
- Lubricants
- Water
Technical Information
Fluid Ratio : 2:1
Max Output Flow Int : 7.5 gpm(28.4 lpm)
Max Output Flow Cont : 5.0 gpm(18.9 Ipm)
Max Output Pressure : 360 psi (24.8 bar)
Max Air Input Pressure : 180 psi (12.4 bar)
Air Inlet Port : 1/4 npt(f)
Fluid Outlet Port : 3/4 npt(f)
Rod Piston Packings : Telfon®
Other Seals : Viton®
Rod Cylinder : Stainless Steel
Other Wetted Parts : Stainless Steel
Weight : 11.8kg
Package : 6"x6"x58"(150mmx150mmx147cm)11.8Kg
