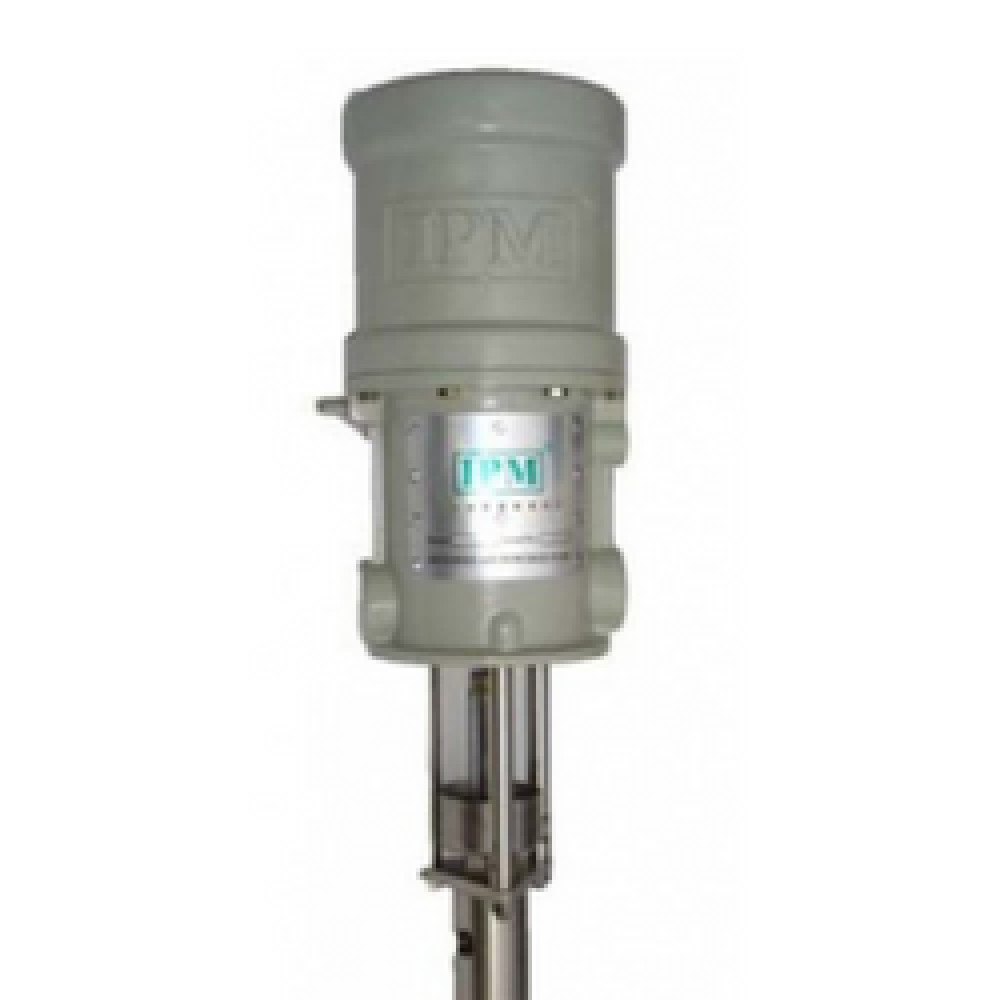

IP-05S Pump (5:1 Ratio)
IP-05S Pump (5:1 Ratio)
Configure for Pricing
Heavy duty air operated fluid pump designed for thicker viscosity and a wider variety of materials.
Product Description
Features
- Fully air operated
- 2 ball piston design provides uniform positive displacement
- Extremely durable pump with long life packing
- Specially designed piston seals do not come into contact with material pumped. Hence, a longer life span as it is able to handle highly problematic fluids like Isocyanates which crystallizes on piston rods upon contact with moisture in air and rupture seals.
Typical Applications
- For wall mount or 5 gallon pail application
- Fluid transfer and supply for application equipment
- Paint circulating
- Cleaning chemical supply
- Wood furniture and fixture finishing
- Fabricated metal finishing
- Aircraft finishing
- Farm and construction Equipment finishing
Typical Fluids Handled
- Solvent based paints
- Water based paints
- Texture coatings
- Cleaning fluids
- Adhesives and sealants
- Urethanes
- Epoxies
- Acrylics
- Silicones
- Polysulfides
- PVC
- Polyesters
Technical Information
Fluid Ratio : 5:1
Max Output Flow Cont : 3.0 gpm(11.4 ipm)
Max Output Pressure : 900 psi (62 bar)
Max Air Input Pressure : 180 psi (12.4 bar)
Air Inlet Port : 3/8" npt(f)
Fluid Outlet Port : 3/4" npt (f)
Rod Piston Packings : UHMWPE/Teflon®
Other Seals : Rubber
Rod Cylinder : Stainless Steel
Other Wetted Parts : Stainless Steel
Weight Stubby Drum : 12.4Kg
Package : 6"x6"x30"(155mm x 155mm x 74cm) 12.4Kg
