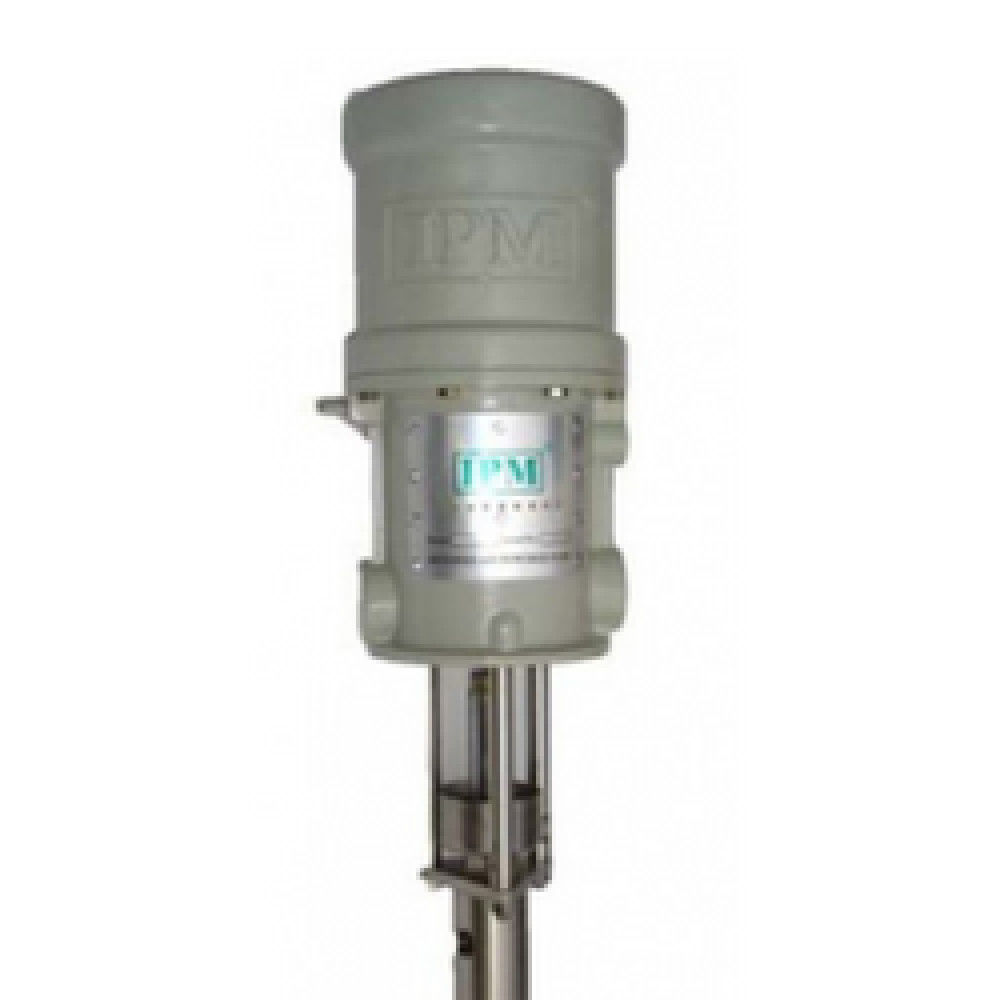

IP-15 Pump (15:1 Ratio)
IP-15 Pump (15:1 Ratio)
Configure for Pricing
Heavy duty air operated fluid pump designed for thicker viscosity and a wider variety of materials.
Product Description
Features
- Fully air operated.
- 2 ball piston design provides uniform positive displacement.
- Extremely durable pump with longer life span.
Typical Applications
- Fully air operated.
- 2 ball piston design provides uniform positive displacement.
- Extremely durable pump with longer life span.
Typical Fluids Handled
- Polyurethanes (Isocyanate or Polyol)
- All kinds of paints
- Coatings
- Mold release
- Stains
- Varnishes
- Lacqueurs
- Lubricants
- Water
Technical Information
Fluid Ratio : 15:1
Max Output Flow Cont : 1.8 gpm (6.8 ipm)
Max Output Pressure : 2700 psi (186.2 bar)
Max Air Input Pressure : 180 psi (12.4 bar)
Air Inlet Port : 1/2" npt(f)
Fluid Outlet Port : 1/2" npt(f)
Rod Piston Packings : UHMWPE/Teflon®
Other Seals : Rubber
Rod Cylinder : Stainless Steel
Other Wetted Parts : Stainless Steel
Weight Stubby Drum : 17 Kg
Package : 8.5"x8.5"x35.4"(215mm x 215mm x 90cm)17kg
