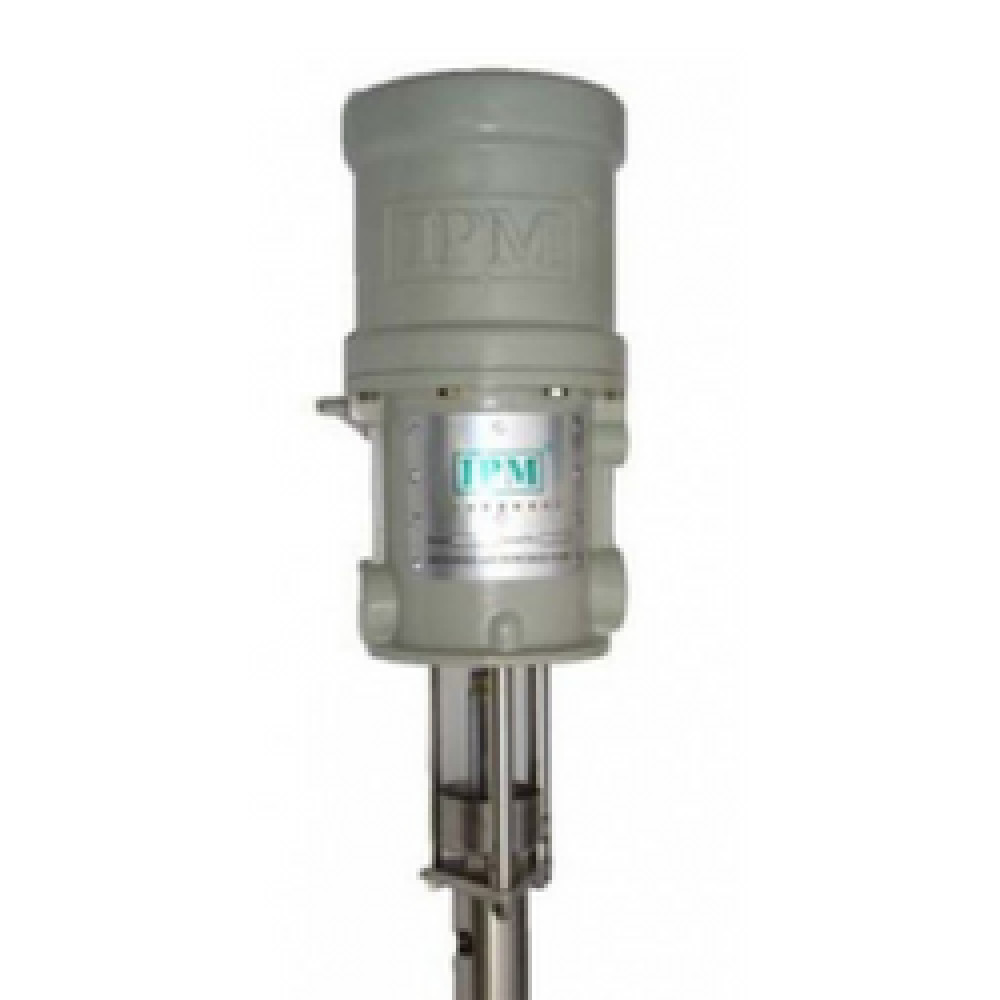

IP-30 Pump (30:1 Ratio)
IP-30 Pump (30:1 Ratio)
Configure for Pricing
Heavy duty air operated fluid pump designed for thicker viscosity and a wider variety of materials.
Product Description
Features
- Fully air operated
- 2 ball piston design provides uniform positive displacement
- Extremely durable pump with long life packing
- Specially designed piston seals do not come into contact with material pumped. Hence, a longer life span as it is able to handle highly problematic fluids like Isocyanates which crystallizes on piston rods upon contact with moisture in air and rupture seals.
Typical Applications
- For wall mount or 5 gallon pail application
- For fluid transfer and feed
- Mobile air spray machines
Typical Fluids Handled
- Polyurethanes (Isocyanate or Polyol)
- All kinds of paints
- Coatings
- Mold release
- Stains
- Varnishes
- Lacqueurs
- Lubricants
- Water
Technical Information
Fluid Ratio : 30:1
Max Output Flow Cont : 1.0 gpm (3.79 ipm)
Max Output Pressure : 5400 psi (372.4 bar)
Max Air Input Pressure : 180 psi (12.4 bar)
Air Inlet Port : 1/2" npt(f)
Fluid Outlet Port : 3/8"npt(f)
Rod Piston Packings : UHMWPE/Teflon®
Other Seals : Rubber
Rod Cylinder : Stainless Steel
Other Wetted Parts : Stainless Steel
Weight Stubby Drum : 16.6Kg
Package : 8.5"x8.5"x35.4"(215mm x 215mm x 90cm) 16.6 Kg
